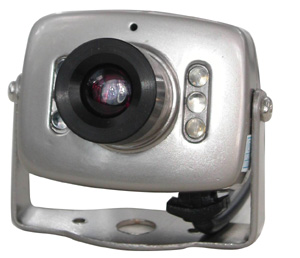

| CMOS MINI CAMERA |
|
|
|
|
| FEATURES |
|
|
|
| ● 1/4''
sensor |
|
| ● Minimum Illumination:
3Lux |
|
| ● Horizontal
Resolution: 380TV Lines |
|
|
|
|
|
|
|
Model
|
208C
|
|
Specification
|
|
|
Image Device
|
1/4'' sensor
|
|
TV System
|
PAL/NTSC
|
|
Effective Pixel
|
628(H) x 582(V)/510(H) x 492(V)
|
|
Picture Area(mm)
|
5.78x4.19/4.69x3.45
|
|
SYNC System
|
Internal
|
|
Scanning System
|
2:1 Interlace
|
|
Scanning Frequency
|
50Hz/60Hz
|
|
Horizontal Resolution
|
380TV Lines
|
|
Minimum Illumination
|
3Lux
|
|
Video output
|
1.0VP-P VBSΩ RCA
|
|
Sensitivity
|
AGC 18dB, On/Off
|
|
S/N Ration
|
≥50dB
|
|
White Balance
|
AWB (2800oK~8000oK)
|
|
Lens
|
Standard Lens F3.6mm
|
|
Deliver the distance
|
|
|
Voltage
|
DC9V
|
|
Power Consumption
|
200mA
|
|
Operating Circumstance
|
Temperature:-10℃~+50℃
|
|
|
Humidity: Within 30~90% RH
|
|
Dimension(mm)
|
27.7x35.4x33.4
|
|
Weight(kg)
|
|
|
Criteria
|
CE
|
|
